E-Pulse

With the Harmony® system, increased negative pressure between the prosthesis socket and liner creates an optimum connection between the prosthesis and residual limb.

Description

Proprioception is enhanced and strain on the residual limb is reduced. In addition, increasing the vacuum reduces the daily volume fluctuations of the residual limb. This effective system to connect a prosthesis has been available to transtibial amputees since 2001 in the form of the mechanical Harmony® pumps (e.g. P2 or HD). Their effectiveness has already been proven by several studies.

Features

  • Reduced daily volume fluctuations

  • Improved proprioception

  • Better connection between the residual limb and prosthesis

  • Reduced strain on the residual limb

  • No weight restrictions

  • No activity level restrictions

  • No amputation height restrictions




Harmony Pump

Ottobock’s Harmony® Vacuum Management System provides superb fit between the liner and socket while minimizing residual limb volume changes throughout the day.

Description

The Otto Bock Harmony vacuum offers a secure suspension by creating a negative vacuum in the socket, offering unprecedented comfort, control and safety. The system uses a pump and an exhaust valve, which are activated at every step when using the mechanical pump or by a sensor with the electronic version. The pump and valve allow the system to constantly regulate pressure for the optimal suspension. The mechanical version of the Harmony also offers a shock damping and torsion function, integrated into the mechanical pump.

Features

In combination with the other Harmony System components (e.g. an Anatomic 3D PUR Liner, a ProFlex Sleeve and the custom made Harmony compatible socket) the Harmony E2 provides volume management for the residual limb, enhanced suspension and reduced forces in the socket.

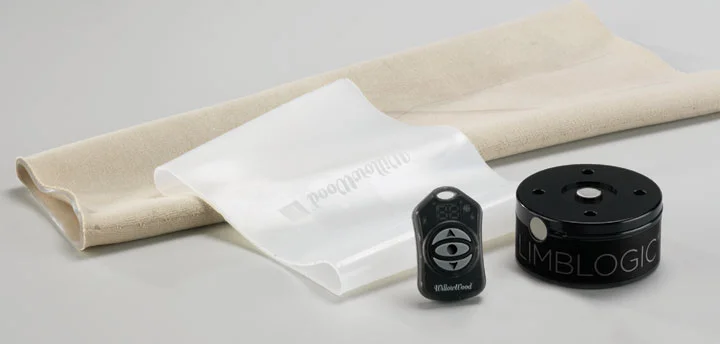

Limb Logic

The evolution of LimbLogic provides elevated vacuum in an easier to use system.

Description

The LimbLogic Sleeve works with the LimbLogic controller to ensure an airtight, secure system. This fabric-covered silicone sleeve comes with a separate silicone cuff. The cuff is placed directly over the socket’s trim line for extra protection from wear and impact. The sleeve is then donned over the cuff. The LimbLogic Sleeve has a repositionable silicone cuff allowing patients using elevated vacuum to fix a leak immediately. This clever, yet simple, design allows the cuff to be repositioned. Should a patient puncture their sleeve, they can rotate the cuff and immediately regain an airtight seal. Additionally, the fabric used on the LimbLogic Sleeve enhances knee flexibility for ease and comfort of movement.

Features

Innovative silicone sleeve with repositionable silicone cuff Recommended for use with LimbLogic® as well as other vacuum systems Enhances knee flexibility Inner cuff allows wearer to fix leaks immediately Repairable silicone for extended sleeve wear Uses proprietary platinum-cured, medical grade silicone

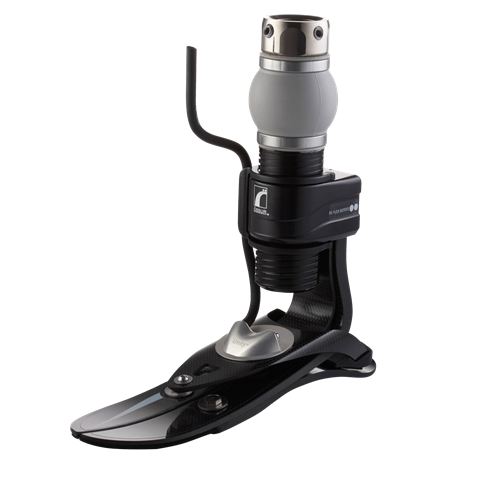

Unity Pump

Unity offers the security and freedom of vacuum suspension, but without the sensation and restrictions of a sleeve. This advanced system from Össur effectively addresses volume fluctuation and is totally compatible with Flex-Foot technology.

Description

With the Unity Vacuum System by Össur, there is finally an elevated vacuum system for all users. Whether an above-knee or below-knee, low active or high active, mechanical or microprocessor solution is required, the Unity Vacuum System offers the flexibility to combine a variety of Össur feet and knees to achieve the optimal combination of equipment for each unique user. Unity is only recommended with sleeveless Seal-In technology

Features

  • No sleeve required: Greater mobility and user acceptance

  • 15-22 in Hg Vacuum: Effective volume stabilization

  • Simple design: Quick and easy to achieve/release vacuum

  • Independent pump: Foot function uncompromised

  • Light weight: Complete system weighs only 130g

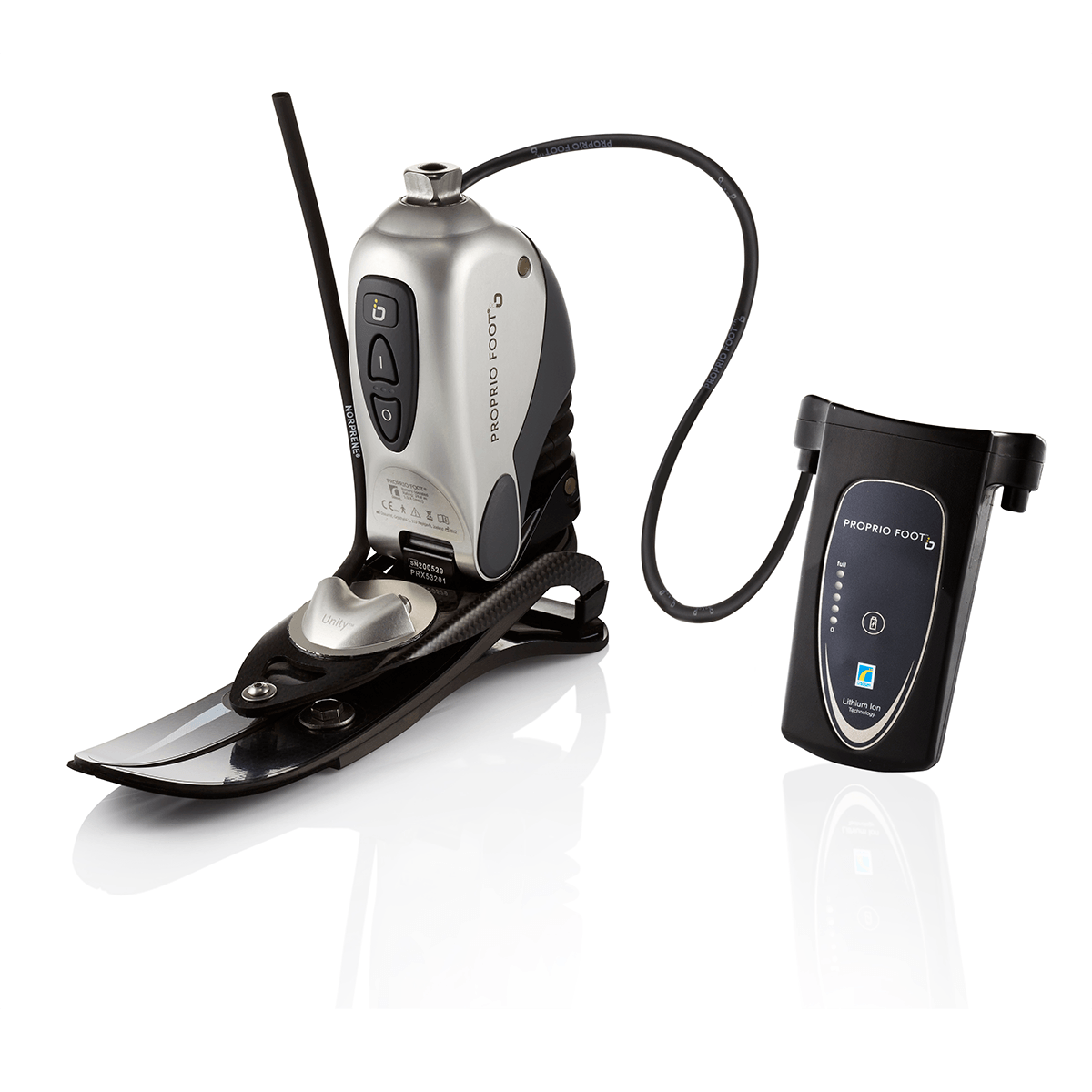

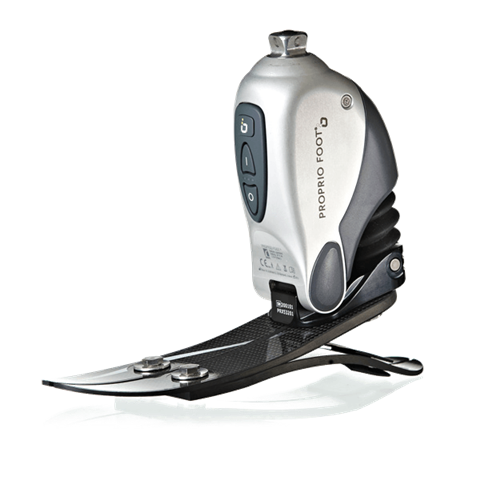

Proprio Foot

Because the world is not flat

Description

PROPRIO FOOT is an adaptive prosthetic device for low to moderately active below-knee amputees that mimics natural foot motion. Motor-powered ankle motion increases ground clearance and reduces the risk of tripping and falling. This allows users to traverse different kinds of terrain in a natural and secure way.

Features

  • Increases ground clearance, reduces the risk of trips and falls and enhances safety and gait quality.

  • Enables users to focus on their surroundings, instead of the walking terrain, offering a high degree of ground compliance, on all kinds of surfaces.

  • Reduces strain on knees, hips and back.

  • Enhances stability, efficiency and comfort on inclines, declines and stairs.

  • Maintains symmetry and alignment while changing shoes.

Soleus Tactical

With a lighter, stronger and more rugged design, the Soleus Tactical can overcome barriers whether on the front line or the home front. Specifically engineered for extra agility and durability for the heroes among us.

Description

The foot was inspired by Dale Beatty, Military Veteran, bilateral amputee and co-founder ofPurple Heart Homes. His organization is committed to leaving no Veteran behind and provides personalized housing solutions for disabled veterans and their families.

A truly redesigned and improved foot, the structure of the Soleus foot was optimized for strength-to-weight ratio based on extensive machine and real world testing. As a result, College Park was able to remove unnecessary weight while retaining superior strength. Coring out the aluminum housing and redesigning the front and back brought about additional removal and redistribution of mass. A new heel spring design created higher cyclic durability and a new mid spring design brought higher ultimate strength. All this combined with a new belt attachment system for higher tensile strength created a foot 40% stronger and 40g (10%) lighter.

Features

  • Vertical Shock Absorption - Impact transfers to a residual limb can be abrupt. The superior vertical shock absorption technology of the Soleus helps dissipate these forces, providing improved comfort and control.

  • High Performance - The finest example of Integrated Spring Technology delivers a foot with unparalleled performance. Yet the Soleus doesn’t compromise daily activities, so you can go from a walk to a run without missing a single step.

  • Proportional Response - Every action has an equal and opposite reaction. Linking multiple composite springs with a flexible plantar ligament and then engaging each at different stages of gait provides ultra-smooth transitions and high frequency response.

  • Integrated Spring Technology (iST) - The art of using multiple springs in parallel or in a series to produce a proportional loading response. e precisely engineer our springs with different dynamics to load and unload at the right time, producing seamless transitions.



LP Rotate

The LP Rotate with EVO has been specially designed for people with long residual limbs, which have insufficient clearance for the Re-Flex Rotate with EVO.

Description

This compact energy-storing foot offers rotational shock absorption designed to reduce shear forces on the residual limb. The Rotate shock module is combined with the LP Vari-Flex foot module. Össur's EVO feature enables the full potential of the foot plate to be realized with every step, helping to enhance natural gait progression. Unity is only recommended with sleeveless Seal-In technology

Features

  • CARBON-X Active Heel - The Carbon-X Active Heel stores the energy during loading response as the amputee transfers his or her body weight onto the prosthetic foot. Energy is gradually released from the heel providing optimal return for forward progression of the limb.

  • EVO - The EVO (Energy Vector Optimization) feature is generated by controlling how the ground reaction force is transferred to the prosthetic foot. Each step is optimized through the magnitude, placement and direction of forces for maximum efficiency. EVO enables the amputee to develop the most natural gait progression possible which reduces fatigue and puts less pressure on the sound side.

  • Full Length Toe Lever - The full length keel/toe lever matches the length of the sound foot, providing improved support to the prosthetic limb during late stance. It ensures that users spend equal time on the prosthetic foot and natural limb, thus providing improved walking dynamics and reduced impact to the sound limb.

  • Proportional Response - The layering of carbon fiber, optimized through extensive computer analysis and mechanical testing, ensures that the deflection of the carbon fiber heel and forefoot components are proportional to the user’s weight and impact level

  • Rotation - Trunk rotation is essential for good gait dynamics. If rotation is limited by loss of joints and the prosthetic interface, gait dynamics and comfort are compromised. Rotational forces are translated to more proximal joints and to the residual limb. Rotary torque absorbing components assist in restoring rotation thus improving joint health, comfort and gait dynamics.

  • Split Toe - A split toe feature allows the foot to adjust to uneven surfaces, allowing amputees to walk with stability and comfort on uneven ground.

  • Vertical Shock Pylon - The vertical shock pylon reduces impact to the residual limb, joints and lower back during daily activities. It also ensures a more energy-efficient gait by minimizing vertical displacement of the center of gravity.

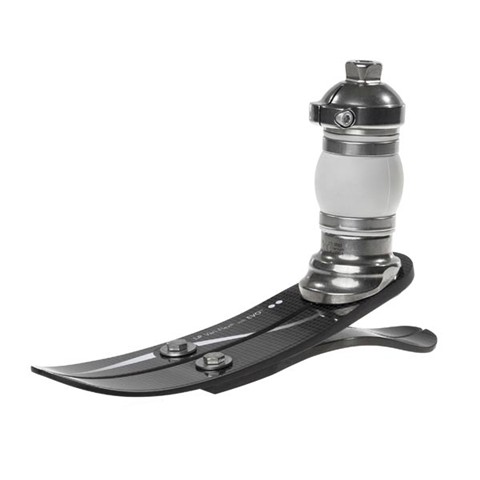

Reflex Rotate

Re-Flex Rotate with EVO is a robust, high performance foot allowing users to enjoy daily living, work and leisure with the comfort and confidence to reach their full potential.

Description

Meeting challenging requirements of the active user by combining optimal shock absorption, dynamic energy return and comfort, the Re-Flex Rotate is one of a kind. Featuring a sleek profile and maintenance free design it is the first choice for active users requiring high performance, comfortable everyday foot.

The torsion cell reduces both rotary forces on the knee joint and shear forces on the residual limb. An integrated torsion cell allows rotational yield designed to protect the residual limb and knee joint. Shock absorption via titanium coil spring reduces impact subjected to the body while enhancing both control and comfort during walking and other activities.

The incorporation of EVO enables users to experience natural gait progression by utilizing the foot plate to its fullest potential. A more natural gait reduces fatigue and puts less strain on the lower back and sound side.

Features

  • Active Tribal Progression - Vertical forces generated at heel contact are stored and translated into a linear motion described as Active Tibial Progression. This action reduces the need to actively push the body forward using the contralateral foot and also equalizes stride length.

  • CARBON-X Active Heel - The Carbon-X Active Heel stores the energy during loading response as the amputee transfers his or her body weight onto the prosthetic foot. Energy is gradually released from the heel providing optimal return for forward progression of the limb.

  • EVO - The EVO (Energy Vector Optimization) feature is generated by controlling how the ground reaction force is transferred to the prosthetic foot. Each step is optimized through the magnitude, placement and direction of forces for maximum efficiency. EVO enables the amputee to develop the most natural gait progression possible which reduces fatigue and puts less pressure on the sound side.

  • Full Length Toe Lever - The full length keel/toe lever matches the length of the sound foot, providing improved support to the prosthetic limb during late stance. It ensures that users spend equal time on the prosthetic foot and natural limb, thus providing improved walking dynamics and reduced impact to the sound limb.

  • Proportional Response - The layering of carbon fiber, optimized through extensive computer analysis and mechanical testing, ensures that the deflection of the carbon fiber heel and forefoot components are proportional to the user’s weight and impact level

  • Rotation - Trunk rotation is essential for good gait dynamics. If rotation is limited by loss of joints and the prosthetic interface, gait dynamics and comfort are compromised. Rotational forces are translated to more proximal joints and to the residual limb. Rotary torque absorbing components assist in restoring rotation thus improving joint health, comfort and gait dynamics.

  • Split Toe - A split toe feature allows the foot to adjust to uneven surfaces, allowing amputees to walk with stability and comfort on uneven ground.

  • Vertical Shock Pylon - The vertical shock pylon reduces impact to the residual limb, joints and lower back during daily activities. It also ensures a more energy-efficient gait by minimizing vertical displacement of the center of gravity.

Ossur K2 sensation foot

K2 Sensation has a flexible full length fiberglass keel, designed to promote user confidence and stability.

Description

The multiaxial function is intended to mimic natural movements in addition to providing a smooth progression from heel strike to toe off, delivering all the comfort necessary for low impact activities. It is lightweight and has a sandal toe pleasing users who prefer a aesthetically looking foot.

K2 Sensation is also available with D/P Flexion™ hydraulic ankle module, that offers 9 degrees of dorsiflexion and plantar flexion during stance phase to help improve stability on ramps and when transitioning from sitting to standing.

Features

  • No sleeve required: Greater mobility and user acceptance
  • 15-22 in Hg Vacuum: Effective volume stabilization
  • Simple design: Quick and easy to achieve/release vacuum
  • Independent pump: Foot function uncompromised
  • Light weight: Complete system weighs only 130g
  • Increased stability and ease of transition

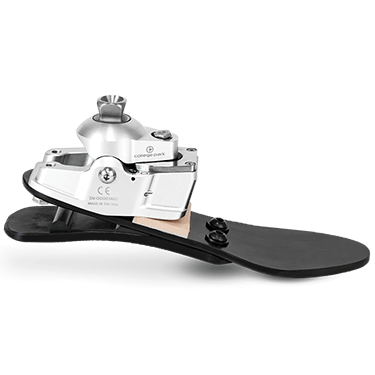

College Park Odyssey K2 foot

The College Park OdysseyK2 foot provides fluid control for superior knee stability and incredible ground contact. The patented curved hydraulic cylinder allows for one pivot point, resulting in a smoother sweep, longer life and the lowest profile hydraulic foot to date.

Description

The College Park Odyssey K2 foot provides 12 degrees of smooth hydraulic motion that works in tandem with an Intelliweave composite foot base. Users gain additional plantar and dorsiflexion for a total range of motion of up to 27 degrees. The foot features independently adjustable plantar and dorsiflexion valves for in-office tuning.

Features

  • Impact level is low
  • Superior range of motion in a lightweight and low profile design for an unbeatable combination of K2 patient benefits.
  • Composites provide the foot with perfect gait-matched movement, increased ground contact for stability, controlled energy and a flexible heel.
  • The patented curved hydraulic cylinder allows for one pivot point, resulting in a smoother sweep, longer life and the lowest profile hydraulic foot to date.
  • Revolutionary curved hydraulic system
  • Amazing motion
  • Users can gain additional plantar and dorsiflexion for a total range of motion up to 27 degrees.
